Toyota RAV4 (XA50) 2019-2025 Owners Manual: RSA (Road Sign Assist)

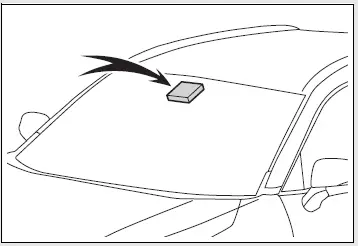

The RSA system recognizes specific road signs using the front camera to provide information to the driver via the display.

If the system judges that the vehicle is being driven over the speed limit, performing prohibited actions, etc.

according to the recognized road signs, it notifies the driver through a visual notification and notification buzzer.

WARNING

■Before using the RSA

Do not rely solely upon the RSA system. RSA is a system which supports the driver by providing information, but it is not a replacement for a driver's own vision and awareness. Drive safely by always paying careful attention to the traffic rules.

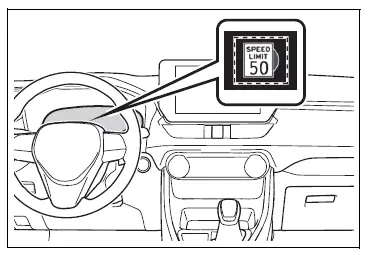

Indication on the multi-information display

When the front camera recognizes a sign, the sign will be displayed on the multi-information display.

• Vehicles with 7-inch display: When the driving support system information display is selected, a maximum of 3 signs can be displayed.

  Vehicles with 12.3-inch display: A maximum of 2 signs can be displayed.

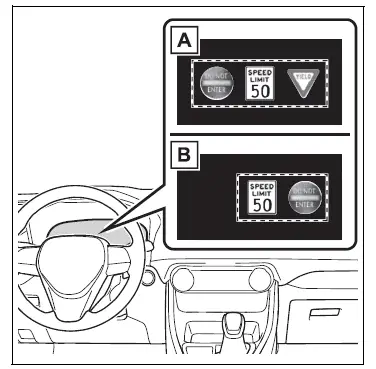

1. Vehicles with 7-inch display
2. Vehicles with 12.3-inch display

• Vehicles with 7-inch display: When a tab other than the driving support system information display is selected, the following types of road signs will be displayed.

• Speed limit sign
• Do Not Enter sign (when notification is necessary)

If signs other than speed limit signs are recognized, they will be displayed in an overlapping stack under the current speed limit sign.

Supported types of road signs

The following types of road signs, including electronic signs and blinking signs, are recognized.

A non-official or a recently introduced traffic sign may not be recognized.

Speed limit

Do Not Enter

  Stop

Yield

Notification function

In the following situations, the RSA system will notify the driver.

• When the vehicle speed exceeds the speed notification threshold of the speed limit sign displayed, the sign display will be emphasized and a buzzer will sound.
• When the RSA system recognizes a do not enter sign and determines that your vehicle has entered a no-entry area, the displayed sign will flash and a buzzer will sound.

Depending on the situation, a notification function may not operate properly.

■Automatic turn-off of RSA sign display

In the following situations, a displayed speed limit sign and/or do not enter sign will stop being displayed automatically:

• No sign has been recognized for a certain distance.
• The road changes due to a left or right turn, etc.

In the following situations, stop and yield signs will stop being displayed automatically:

• The system determines that your vehicle has passed the sign.
• The road changes due to a left or right turn, etc.

■Conditions in which the function may not operate or detect correctly

In the following situations, RSA does not operate normally and may not recognize signs, display the incorrect sign, etc. However, this does not indicate a malfunction.

• The front camera is misaligned due to a strong impact being applied to the sensor, etc.
• Dirt, snow, stickers, etc. are on the windshield near the front camera.
• In inclement weather such as heavy rain, fog, snow or sand storms.
• Light from an oncoming vehicle, the sun, etc. enters the front camera.
• The sign is dirty, faded, tilted or bent.
• The contrast of electronic sign is low.
• All or part of the sign is hidden by the leaves of a tree, a pole, etc.
• The sign is only visible to the front camera for a short amount of time.
• The driving scene (turning, lane change, etc.) is judged incorrectly.
• If a sign not appropriate for the currently traveled lane, but the sign exists directly after a freeway branches, or in an adjacent lane just before merging.
• Stickers are attached to the rear of the preceding vehicle.
• A sign resembling a system compatible sign is recognized.
• Side road speed signs may be detected and displayed (if positioned in sight of the front camera) while the vehicle is traveling on the main road.
• Roundabout exit road speed signs may be detected and displayed (if positioned in sight of the front camera) while traveling on a roundabout.
• The front of the vehicle is raised or lowered due to the carried load.
• The surrounding brightness is not sufficient or changes suddenly.
• When a sign intended for trucks, etc. is recognized.
• The speed information displayed on the meter and on the navigation system may be different due to the navigation system using map data.

■Speed limit sign display

If the engine switch was last turned off while a speed limit sign was displayed on the multi-information display, the same sign displays again when the engine switch is turned to ON.

■If "RSA Malfunction Visit Your Dealer" is shown

The system may be malfunctioning.

Have the vehicle inspected by your Toyota dealer.

■Customization

Some functions can be customized.
