Toyota RAV4 (XA40) 2013-2018 Owners Manual: Fog light switch

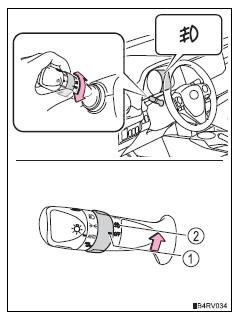

The fog lights secure excellent visibility in difficult driving conditions, such as in rain and fog.
(U.S.A.) Or (canada)
turns the fog lights off
Turns the fog lights on
Fog lights can be used when
The headlights are on in low beam.
Turning the high beam on/off manually
Switching to low beam
Pull the lever to original position.
Switching to high beam
Turn the light switch to
position.
The automatic high beam indicator
will turn off and the high
beam indic ...
