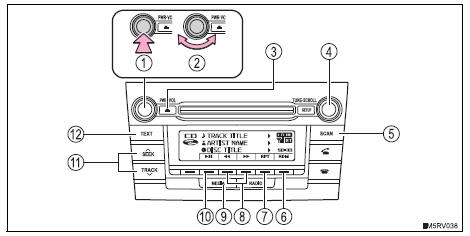

Loading cds
Insert a cd.
Ejecting cds
Press and remove the cd.
Selecting a track
Turn the knob or press
to move up or
to
move down using the button until the
desired track
number is displayed.
Selecting a track from a track list
The track list will be displayed.
To return to the previous display, press
(back).
Scanning tracks
The first 10 seconds of each track will be played.
To cancel, press the button again.
Fast-forwarding and rewinding tracks
Press
Random play
Press (rdm).
To cancel, press
(rdm) again.
Repeat play
Press (rpt).
To cancel, press (rpt) again.
Playing and pausing tracks
Press
Switching the display
Press the “text” button to display or hide the cd title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
Display
Depending on the contents recorded, the characters may not be displayed properly or may not be displayed at all.
Error messages
“Error”: this indicates a problem either in the cd or inside the player.
“Cd check”: the cd may be dirty, damaged or inserted upside-down.
“Wait”: operation has stopped due to a high temperature inside the player. Wait for a while and then press the “media” button. If the cd still cannot be played back, contact your toyota dealer.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or due to scratches, dirt or deterioration.
Cds with copy-protect
features may not play correctly.
Cd player protection feature
To protect the internal components, playback is automatically stopped when a problem is detected while the cd player is being used.
If a cd is left inside the cd player or in the ejected position for extended periods
The cd may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the cd player.
Notice
Cds and adapters that cannot be used
Do not use the following types of cds.
Also, do not use 3 in. (8 Cm) cd adapters, dualdiscs or printable discs.
Doing so may damage the player and/or the cd insert/eject function.
Notice
Cd player precautions
Failure to follow the precautions below may result in serious damage to the cds or the player itself.
