Use the overhead switches to open and close the moon roof and tilt it up and down.
Operating the moon roof

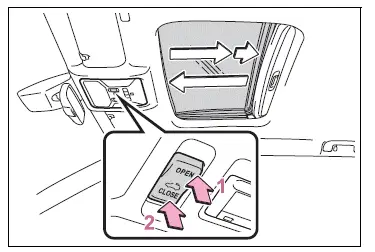

â– Opening and closing
Press the switch again to fully open the moon roof.
*: Lightly press either side of the moon roof switch to stop the moon roof partway.

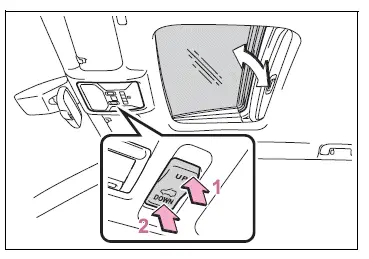

â– Tilting up and down
*: Lightly press either side of the moon roof switch to stop the moon roof partway.
â– The moon roof can be operated when
The engine switch is in ON.
â– Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine switch is turned to ACC or OFF. It cannot, however, be operated once either front door is opened.
â– Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is closing or tilting down, travel is stopped and the moon roof opens slightly.
â– Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.
â– Door lock linked moon roof operation
*: These settings must be customized at your Toyota dealer.
â– When the moon roof does not close normally
Perform the following procedure:
1. Stop the vehicle.
2. Press and hold the "CLOSE" switch.* The moon roof will close, reopen and pause for approximately 10 seconds. Then it will close again and stop at the completely closed position.
3. Check to make sure that the moon roof is completely closed and then release the switch.
*: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning
If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.
â– If the moon roof does not move normally
If the moon roof does not open or close normally or the automatic opening function does not operate, perform the following initialization procedure.
1. Stop the vehicle.
2. Press and hold the "DOWN" switch.*
The moon roof will stop at the tilt-up position. After that, it will open, close, tilt up, tilt down, and stop at the fully closed position.
3. Confirm that the moon roof has completely stopped and release the switch.
*: If you release the switch while the moon roof is moving, perform the procedure again from the beginning.
If, after performing the above procedures correctly, the moon roof still does not open or close normally or the automatic opening function does not operate, have the vehicle inspected by your Toyota dealer.
â– Moon roof open reminder function
The buzzer sounds and a message is shown on the multi-information display when the engine switch is turned to OFF and the driver's door is opened with the moon roof open.
â– Customization
Settings (e.g. linked door lock operation) can be changed.
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
â– Opening the moon roof
â– Opening and closing the moon roof

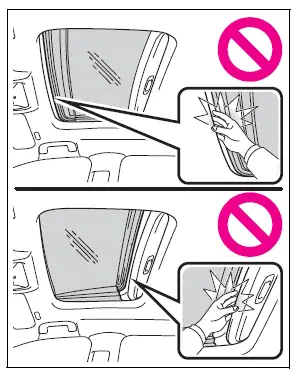

In order to prevent accidental operation, especially by a child, do not let a child operate the moon roof. It is possible for children and other passengers to have body parts caught in the moon roof.
â– Jam protection function
