Perform the following to protect the vehicle and maintain it in prime condition:
Cleaning instructions
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
â– Automatic car washes
Start washing from the front of the vehicle. Make sure to extend the mirrors before driving.
There may also be an increased risk of damage to vehicle.
â– High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps around the doors or perimeter of the windows, or spray these areas continuously.
â– Note for a smart key system (if equipped)
If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. In that case, follow the following correction procedures to wash the vehicle:
â– Wheels and wheel ornaments (vehicles without matte painted wheels)
â– Wheels and wheel ornaments (vehicles with matte painted wheels)
A different set of care is necessary for matte painted wheels and wheel ornaments.
Contact your Toyota dealer for details.
If the wheels are excessively dirty, use diluted neutral detergent.
Then use a soft cloth to wipe off the water.
â– Brake pads and calipers
Rust may form if the vehicle is parked with wet brake pads or disc rotors, causing them to stick. Before parking the vehicle after it is washed, drive slowly and apply the brakes several times to dry the parts.
â– Bumpers
Do not scrub with abrasive cleaners.
â– Plated portions
If dirt cannot be removed, clean the parts as follows:
WARNING
â– When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the electrical components, etc. to catch fire.

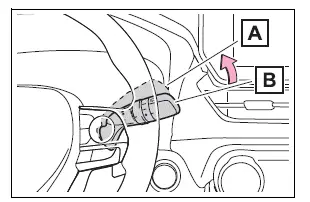

â– When cleaning the windshield (vehicles with rain-sensing windshield wipers)
Set the wiper switch to off.
If the wiper switch is in "AUTO", the wipers may operate unexpectedly in the following situations, and may result in hands being caught or other serious injuries and cause damage to the wiper blades.
â– Precautions regarding the exhaust pipes
Exhaust gasses cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled sufficiently, as touching hot exhaust pipes can cause burns.
â– Precaution regarding the rear bumper
If the paint of the rear bumper is chipped or scratched, the following systems may not function correctly.
If this occurs, consult your Toyota dealer.
NOTICE
â– To prevent paint deterioration and corrosion on the body and components (aluminum wheels, etc.)
â– Cleaning the exterior lights
This may damage the surfaces of the lights.
Wax may cause damage to the lenses.
â– When using an automatic car wash (vehicles with rain-sensing windshield wipers)
Set the wiper switch to off position.
If the wiper switch is in "AUTO", the wipers may operate and the wiper blades may be damaged.
â– When using a high pressure car wash
Otherwise it may cause the device to be damaged.
The parts may be damaged if they come into contact with high-pressure water.
