Toyota RAV4 (XA40) 2013-2018 Service Manual: Replacement

  1. Replace timing chain cover oil seal

Toyota RAV4. Replace timing chain cover oil seal

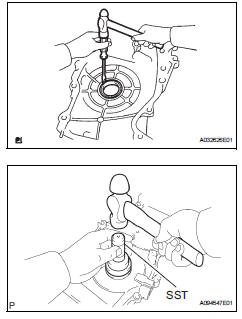

  1. Using a screwdriver and hammer, tap out the oil seal.
  2. Place the oil seal retainer on wooden blocks.
  3. Apply multi-purpose grease to the lip of a new oil seal.

Notice:

Keep the lip free of foreign objects.

  1. Using sst and a hammer, tap in a new oil seal until its surface is flush with the timing gear case edge.

Sst 09223-22010

Notice:

Do not tap the oil seal at an angle.

Inspection
Inspect no. 1 Chain tensioner Check that the plunger moves smoothly when the ratchet pawl is raised with your finger. Release the ratchet pawl, then check that the plunger is locked ...

Installation
Install no. 2 Chain sub-assembly Set the crankshaft key in the left horizontal position. Turn the cutout of the drive shaft so that it faces upward. Align the yellow mark li ...
