Toyota RAV4 (XA40) 2013-2018 Service Manual: Precaution

  1. Check that the battery cables are connected to the correct terminals.

  2. Disconnect the battery cables if a quick charge is given to the battery.

  3. Do not perform tests with a high voltage insulation resistance tester.

  4. Never disconnect the battery while the engine is running.

  5. Check that the charging cable is tightly connected onto terminal b of the generator and the fuse box.

  6. Do not check whether the generator generates current or not while terminal f is connected to the other terminals.

Parts location

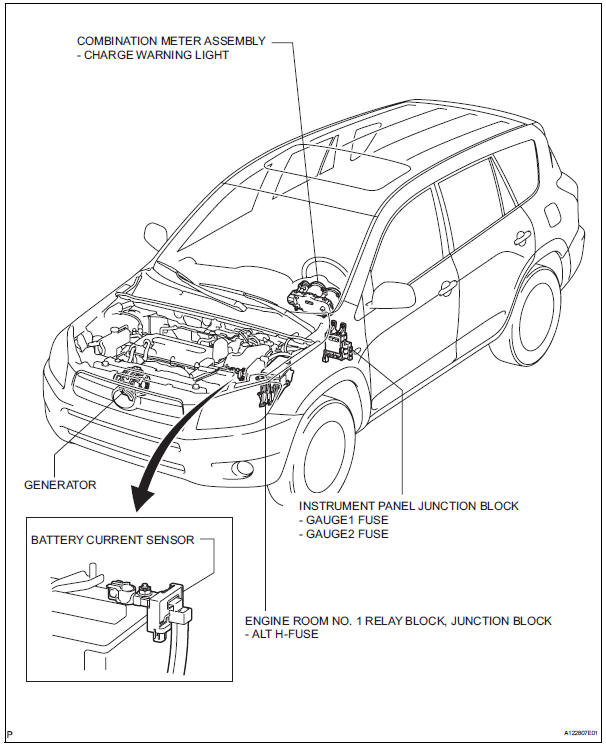

Toyota RAV4. Parts location


System diagram

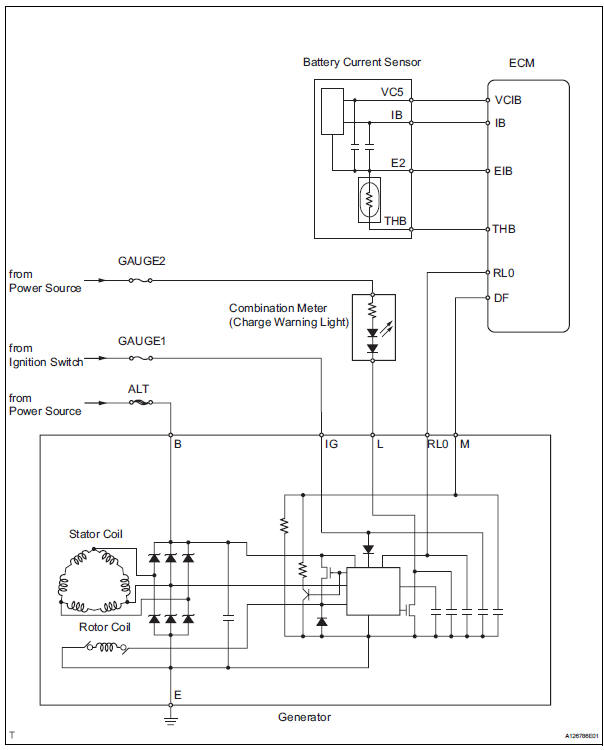

Toyota RAV4. System diagram


Charging system
...

On-vehicle inspection
Check battery condition Notice: If the battery is weak or if the engine is difficult to start, perform the following procedures. Check the battery for damage and deformation. If severe d ...
