Toyota RAV4 (XA40) 2013-2018 Service Manual: Parts location (2005/11-2006/01)

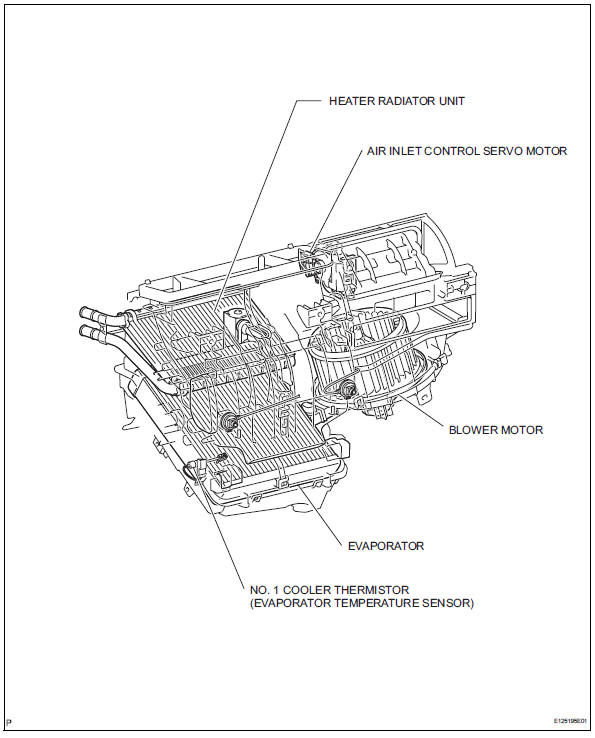

Toyota RAV4. Parts location (2005/11-2006/01)

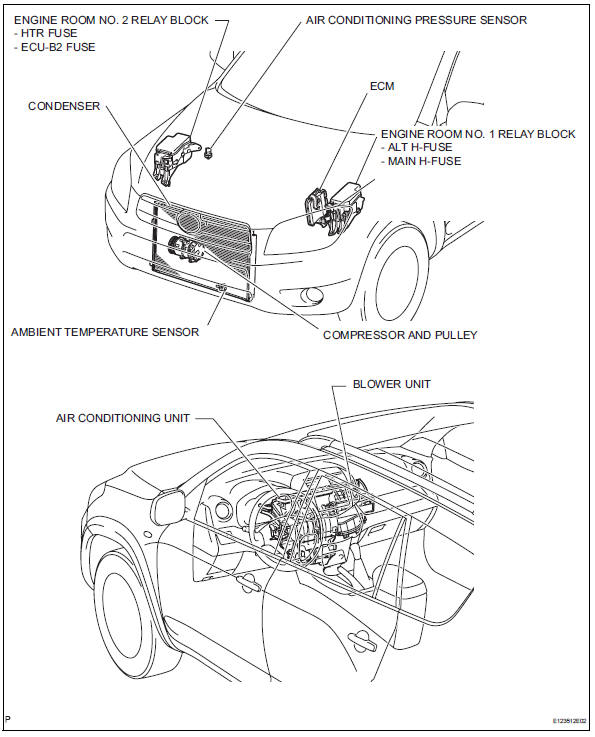

Toyota RAV4. Parts location (2005/11-2006/01)

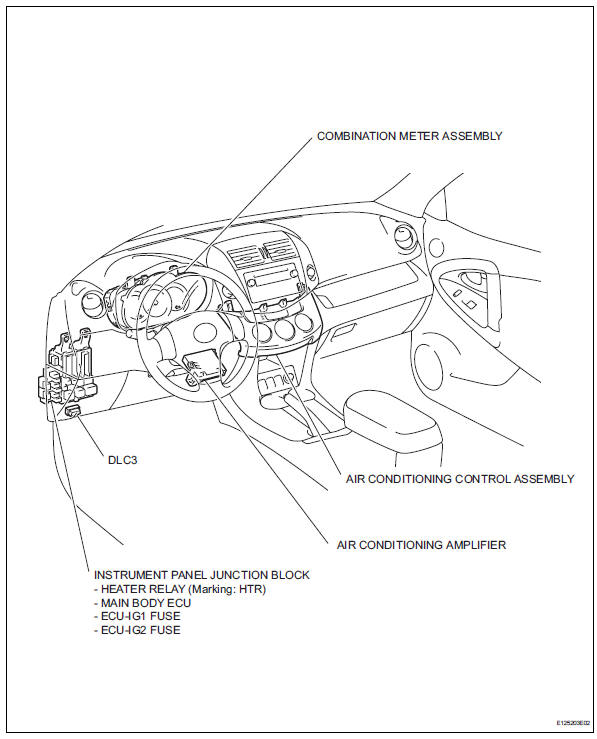

Toyota RAV4. Parts location (2005/11-2006/01)


Precaution
If any of following conditions are met, keep engine idling with a/c on (engine speed at less than 2000 rpm) for at least 1 minute: Refrigerant gas has been refilled or a/c parts have ...
