Toyota RAV4 (XA50) 2019-2025 Owners Manual: Front seat concentrated airflow mode (S-FLOW)

This function automatically controls the air conditioning airflow so that priority is given to the front seats. Unnecessary air conditioning is suppressed, contributing to increased fuel efficiency.

Front seat concentrated airflow mode operates in the following situations.

While operating, illuminates.


â–  Manually turning front seat concentrated airflow mode on/off

In front seat concentrated airflow mode, directing airflow to the front seats only and to all seats can be switched via switch operation. When the mode has been switched manually, automatic airflow control stops operating.

Press on the air conditioning
operation panel and switch the airflow.

â– Operation of automatic airflow control

â– Operation of manual airflow control

Even if the function is manually switched to directing airflow to only the front seats, when a rear seat is occupied, it may automatically direct airflow to all seats.

To return to automatic airflow control

1. With the indicator off, turn the engine switch to OFF.

2. After 60 minutes or more elapse, turn the engine switch to ON.

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from building up on the windshield and wiper blades.

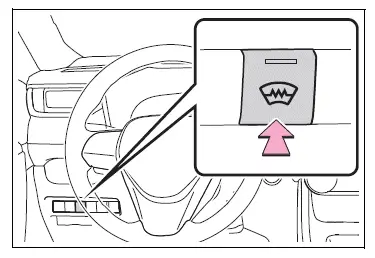

Press the switch to turn the system on/off.

The indicator comes on when the system is on.

The windshield wiper de-icer will automatically turn off after a period of time.

Using the air conditioning system and defogger


WARNING

â– To prevent burns

Do not touch the glass at lower part of the windshield or to the side of the front pillars when the windshield wiper deicer is on.

Air outlet layout and operations

â–  Location of air outlets

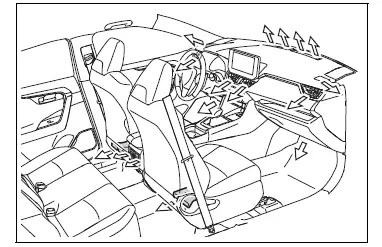

The air outlets and air volume change according to the selected air flow mode.

Using the air conditioning system and defogger


â–  Adjusting the air flow direction and opening/closing the air outlets

Front

Using the air conditioning system and defogger

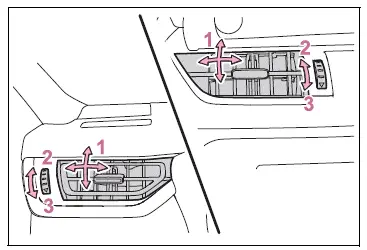

  1. Direct air flow to the left or right, up or down
  2. Open the vent*
  3. Close the vent*

*: If equipped (center air outlets only)

Rear

Using the air conditioning system and defogger

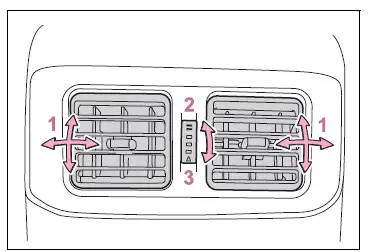

  1. Direct air flow to the left or right, up or down
  2. Open the vent
  3. Close the vent

WARNING

â– To not interrupt the windshield defogger from operating

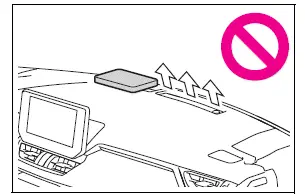

Do not place anything on the instrument panel which may cover the air outlets. Otherwise, air flow may be obstructed, preventing the windshield defoggers from defogging.

Using the air conditioning system and defogger


Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the temperature setting. Air conditioning controls Automatic mode switch Left-hand side temperature control knob Right-hand side ...

Heated steering wheel/seat heaters/seat ventilators
Heated steering wheel Warm up the grip of the steering wheel Seat heaters Warm up the seat upholstery Seat ventilators Maintain good ventilation by pulling air through the seat upholstery W ...
