Toyota RAV4 (XA40) 2013-2018 Service Manual: Brake pedal load sensing switch
On-vehicle inspection
- Inspect brake pedal load sensing switch
Hint:
- Do not remove the brake pedal load sensing switch from the brake pedal support.
- When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal support.

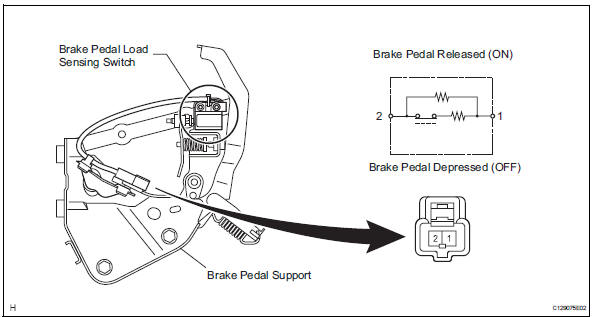

- Disconnect the brake pedal load sensing switch connector.
- Measure the resistance of the switch.
Standard resistance
If the value is not as specified, replace the brake pedal support assembly (see page br-12).
