Toyota RAV4 (XA40) 2013-2018 Service Manual: Terminals of ecu
- Check combination meter assembly

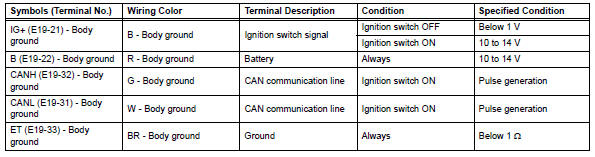

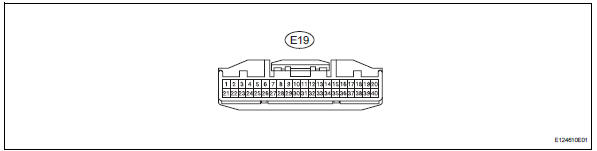

- Measure the voltage and resistance of the connector.
- Check instrument panel junction block (main body ecu)

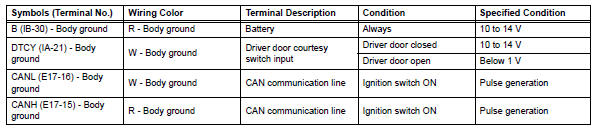

- Measure the voltage and resistance of the connectors.
Problem symptoms table
Hint:
Use the table below to help determine the cause of the
problem symptom. The potential causes of the symptoms are
listed in order of probability in the "suspected area" column
of th ...
Diagnosis system
Description
Key reminder warning system data can be read
through the data link connector 3 (dlc3) of the
vehicle. When the system seems to be
malfunctioning, use the intelligent tes ...
