Toyota RAV4 (XA40) 2013-2018 Service Manual: ECM

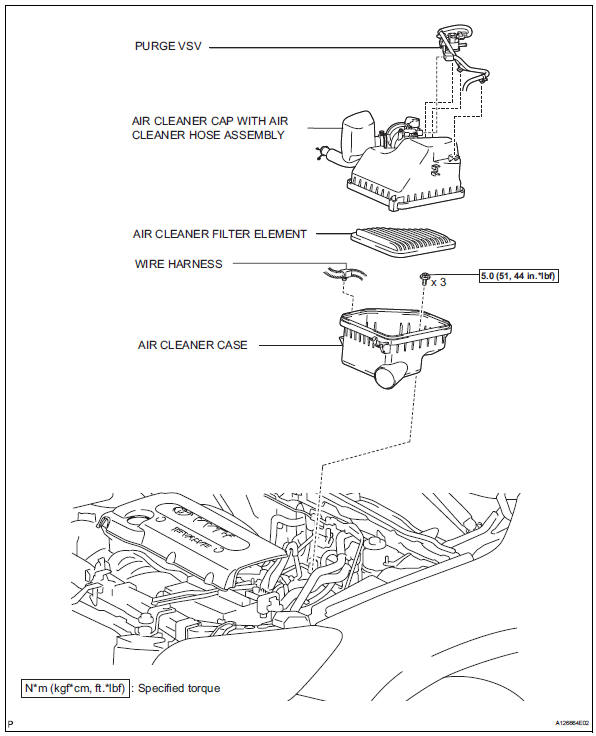

Components

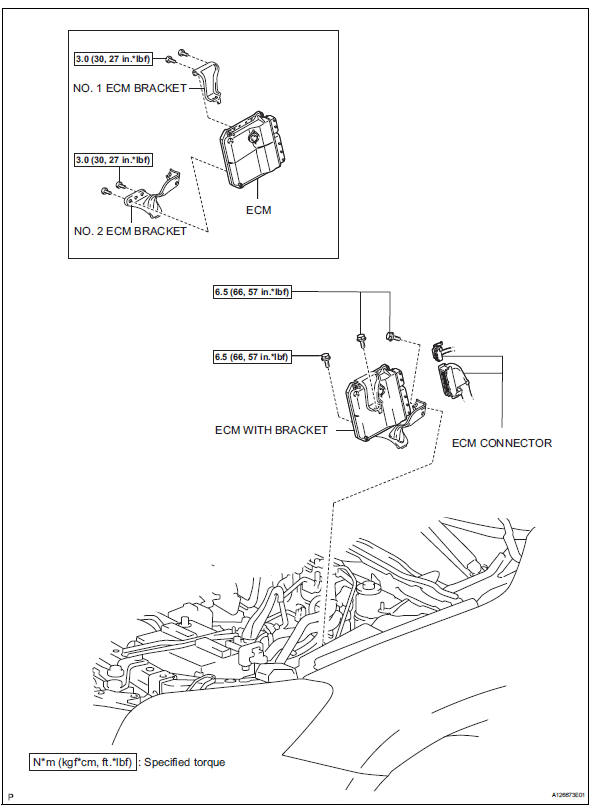

Toyota RAV4. Components


Toyota RAV4. Components


Circuit opening relay
On-vehicle inspection Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airb ...

Removal
Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt preten ...
