Toyota RAV4 (XA40) 2013-2018 Service Manual: Customize parameters

Notice:

  1. Combination meter

Toyota RAV4. Combination meter


  1. Air conditioning system

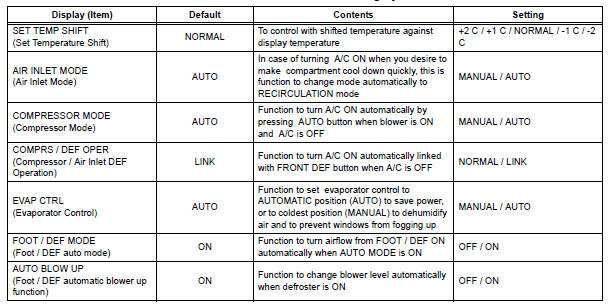

Toyota RAV4. Air conditioning system


  1. Power door lock control system

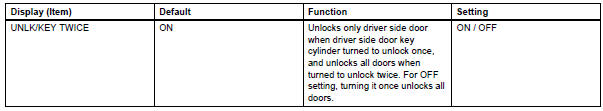

Toyota RAV4. Power door lock control system


  1. Wireless door lock control system

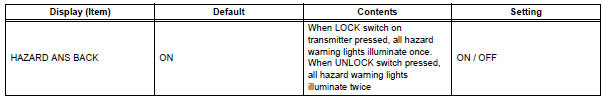

Toyota RAV4. Wireless door lock control system

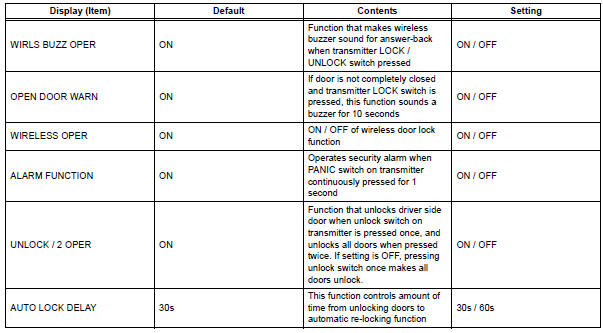

Toyota RAV4. Wireless door lock control system


  1. Lighting system

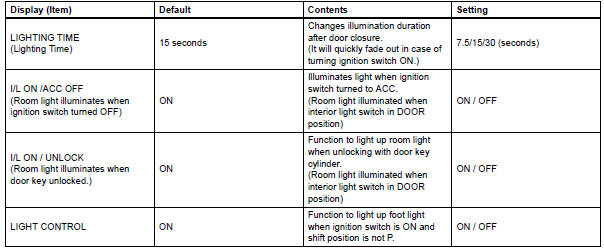

Toyota RAV4. Lighting system
