â– Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about the installation of the child restraint system.

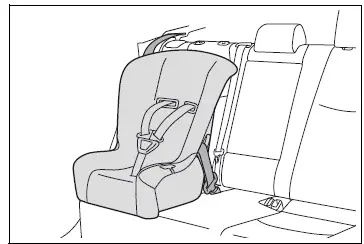

Seat belt attachment

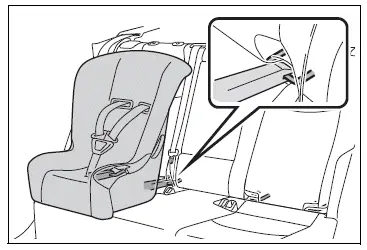

Child restraint LATCH anchors attachment

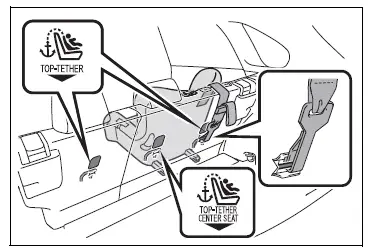

Anchor brackets (for top tether strap) attachment
When using a child restraint system

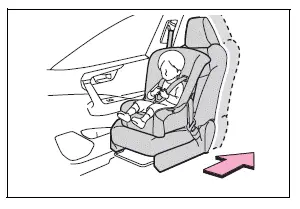

â– When installing a child restraint system to a front passenger seat

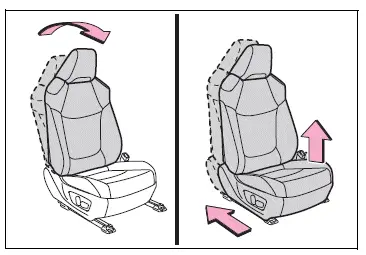

For the safety of a child, install a child restraint system to a rear seat. When installing a child restraint system to the front passenger seat is unavoidable, adjust the seat as follows and install the child restraint system.
If the passenger seat height can be adjusted, move it to the upper most position.
Otherwise, put the head restraint in the upper most position.
WARNING

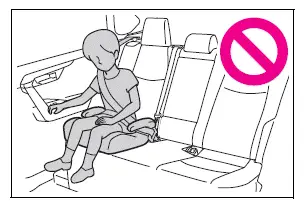

â– When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.

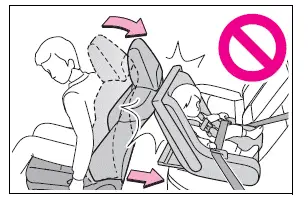

If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint.
It is dangerous if the SRS side and curtain shield airbags inflate, and the impact could cause death or serious injury to the child.
